    Technical Fields Configuration Guide

    The Technical Fields feature, allows you to automatically enrich target records with structural metadata extracted at runtime from the source database’s transaction logs or change streams. This feature provides built-in support for audit trails, data lineage, and compliance requirements without needing custom transformation logic.

    How-to guide

    For a step-by-step walkthrough tested on a running Gluesync, see the how-to guide Choose keys for tables without a primary key.

    Overview

    When enabled, Gluesync automatically injects specific metadata columns into the target data schema. Instead of replicating only business data, the engine captures transaction-level details from the source datastore (such as MySQL binlogs, MS SQL Server transaction logs, or IBM i journals) and appends them to each record during both snapshot and continuous replication phases.

    Technical fields are standard across all supported relational (RDBMS) and NoSQL target agents. All metadata columns are prefixed with an underscore (_) to distinguish them from user business columns and prevent naming conflicts.

    Supported Technical Fields

    The following metadata columns can be toggled on a per-pipeline basis from the Control Plane. Note that some fields are specific to the underlying source database technology:

    Target Field Name Data Type Description Example Value

    _TRANSACTION_ID

    VARCHAR / TEXT

    The unique global identifier (GUID, LSN, or log sequence hash) of the transaction on the source database. Useful for grouping records modified in the same commit block.

    HABrg0sIqzHfVOGdz…​

    _TRANSACTION_TIMESTAMP

    BIGINT / DATETIME

    The exact epoch timestamp (in milliseconds) or datetime value indicating when the transaction was committed on the source system.

    1717604307000

    _TRANSACTION_OPERATION

    CHAR(1) / VARCHAR

    The CRUD operation type that triggered the event:
    * I = Insert
    * U = Update
    * D = Delete
    * S = Snapshot / Initial Load

    U

    _TRANSACTION_USER

    VARCHAR

    The identity of the database user or application account that executed the transaction on the source engine.

    app_sales_prod

    _RRN_COLUMN

    BIGINT

    Specific to IBM i (AS400) sources. Represents the Relative Record Number of the row in the source database.

    1234567

    _RECEIVER_LIBRARY

    VARCHAR

    Specific to IBM i (AS400) sources. The library containing the journal receiver.

    QGPL

    _RECEIVER_NAME

    VARCHAR

    Specific to IBM i (AS400) sources. The name of the journal receiver.

    RCV0001

    _SEQUENCE_NUMBER

    BIGINT

    Specific to IBM i (AS400) sources. The journal sequence number for the specific change event.

    987654321

    _ROWID

    VARCHAR

    Specific to Oracle CDC sources. The unique physical row identifier in the Oracle database.

    AAAB12AADAAAAwPAAA

    For a comparison of the key choices, see the how-to guide Choose a key strategy: physical, logical, RRN or computed.

    Ingestion Behavior

    The behavior of technical fields depends on the execution phase of the replication entity:

    • Snapshot Phase (Initial Load): Records migrated in bulk are stamped with a conventional transaction identifier and a timestamp reflecting the ingestion execution time. The operation column is typically set to I or S.

    • Change Data Capture (CDC) Phase: During real-time streaming, Gluesync preserves transaction atomicity. If a single source transaction updates multiple rows (or multiple tables inside a START TRANSACTION block), all corresponding target rows will share the exact same _TRANSACTION_ID and _TRANSACTION_TIMESTAMP.

    Configuration and Activation

    Setup via Web UI (Control Plane)

    To enable technical fields on an existing pipeline:

    1. Navigate to Data pipelines in the left menu of the Gluesync Control Plane.

    2. Select your pipeline and click the edit (pencil) icon.

    3. Go to the Target Agent configuration step.

    4. Locate the Custom properties section.

    5. In the Key dropdown, select Technical fields.

    6. A multi-select dropdown will appear under the Value column. Check the boxes for the desired metadata columns you want to include (e.g., _TRANSACTION_ID, _TRANSACTION_TIMESTAMP, _TRANSACTION_OPERATION, _TRANSACTION_USER, or database-specific fields like _RRN_COLUMN and _ROWID).

    7. Save and publish the pipeline configuration.

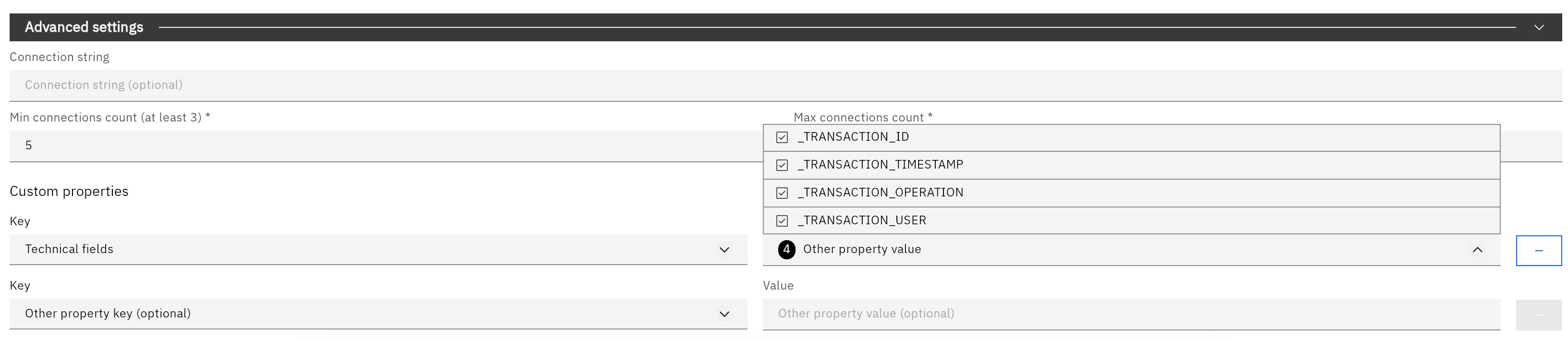

    Technical fields configuration in the Control Plane

    Mandatory Resync Rule: If you activate technical fields on a pipeline that already has active entities with running replication tasks, Gluesync will require a mandatory resync. The engine must execute DDL (ALTER TABLE ADD COLUMN) statements on the target database to add the metadata columns before CDC resumes.

    Target Table Creation Wizard and Fields Editor

    When adding a new table via the Objects Browser, if the table does not exist on the target database, Gluesync launches the Target Table Creation Wizard. If technical fields are enabled at the pipeline level, the generated CREATE TABLE statement will automatically include the structural definitions for the enabled metadata columns, matching the target database’s data types.

    If the table already exists, or when you are editing an existing entity, you will see the selected technical fields appear directly inside the Fields Editor mapped to their respective target columns. You can treat them as regular fields, and change their data type where the target type can be changed. See Data types in the Fields Editor.

    Setup via REST API (Bootstrapper / Automator)

    For infrastructure-as-code or programmatic deployments, you can activate technical fields by defining the technicalFields array inside the target agent’s specificConfiguration block within your config.json or config.yaml file:

    {
      "agentType": "TARGET",
      "agentTag": "mssql-target",
      "specificConfiguration": {
        "technicalFields": [
          "_TRANSACTION_ID",
          "_TRANSACTION_TIMESTAMP",
          "_TRANSACTION_OPERATION",
          "_TRANSACTION_USER",
          "_RRN_COLUMN",
          "_ROWID"
        ]
      }
    }

    Troubleshooting & Defect Isolation

    If you encounter issues where technical fields are not appearing in your target database or contain persistent NULL values, follow these troubleshooting steps:

    1. Verify Target Schema and Permissions

    If the target table already existed before you enabled technical fields, Gluesync attempts to execute ALTER TABLE ADD COLUMN statements during the mandatory resync.

    • Check: Manually inspect the target table’s DDL to see if the metadata columns were successfully created.

    • Fix: Ensure the database user account assigned to the Gluesync target agent has the necessary ALTER privileges. If permissions are restricted by your organization, you must add these columns manually using the appropriate data types.

    2. Isolate Payload Data using a UDF

    To determine whether the issue lies within the source extraction (the agent is not reading the metadata) or the target ingestion (the agent is not writing it), you can use a User Defined Function (UDF) to dump the payload in transit.

    Apply this diagnostics Java UDF inside the Fields Editor:

    import java.util.Map;
    import kotlin.Pair;
    import com.molo17.gluesync.commons.model.api.MappingFunctionOperation;
    import org.slf4j.Logger;

    public class UDF_Diagnostics {
        public Pair<MappingFunctionOperation, Map<String, Object>> onChange(Map<String, Object> newValues, Map<String, Object> oldValues, MappingFunctionOperation operation, Logger logger) {

            // This will print the entire payload including the injected technical fields
            logger.info("Payload data in transit: " + newValues);

            return new Pair<>(operation, newValues);
        }
    }

    If the logs show the fields are populated, the issue is on the target side. If they are missing, the issue originates at the source.

    3. Review Source-Specific Limitations

    Some technical fields, such as _RRN_COLUMN for IBM i or _ROWID for Oracle, rely on specific source database configurations.

    • Check: Ensure the source database is configured to expose this metadata. For example, verify that your AS400 journal is capturing the required entry types, or that Oracle has the appropriate supplemental logging enabled.

    4. Inspect Core Hub and Agent Logs

    Check the gluesync.log (or your container logs) for warnings related to type casting or schema mapping.

    • Look for: Failed to alter table or Type mismatch warnings during the initial snapshot or entity startup phase.
