Gluesync - RDBMS and NoSQL data replication

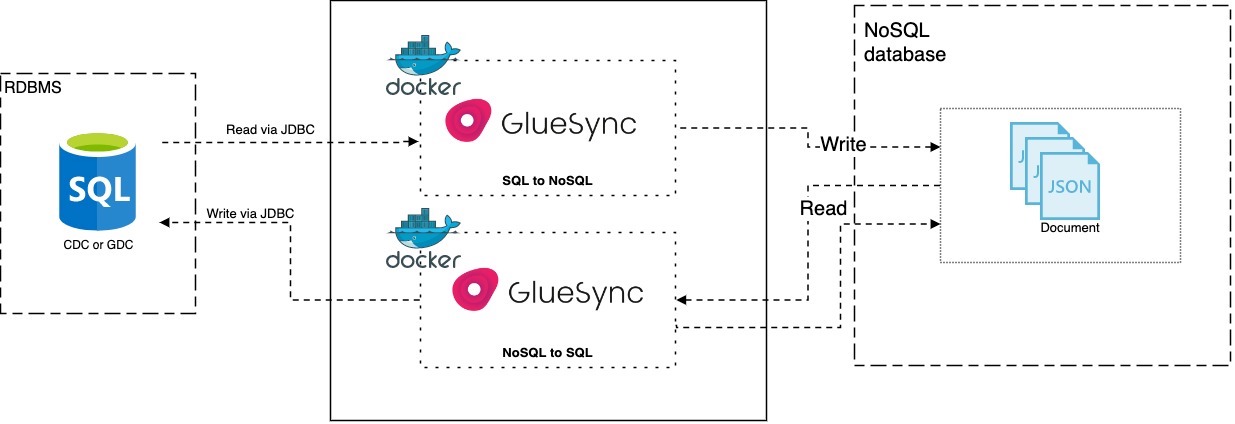

The design concept that have been adopted has basically been taking in consideration the purpose of each core functionality provided by the suite: it provides ability to replicate data from a relational database to a non-relational database and vice versa. This two aformentioned functionalities are called "ways" or "directions".

So, rather than having a monolithic single piece of general-purpose software, we have decoupled its functinalities into an auto-consistent and highly-resilient and specialized service per each "direction". Capable of replicating, logging, alerting and being monitored by itself without the need of a master central authority that could only have increased complexity and introduced a single point of failure into the overall architecture.

Being that said the result and outcome for our users is the ability to decide what to deploy per each use case: you have the control over the decision to deploy only the module to replicate data from MS SQL Server to MongoDB or just the vice versa due to your specific use case. In that way you’re going to have the fine graned control over permissions, security and performances that you deserve from a product made for real-world production use cases.

When talking about sourcing changes from a relational database there are just a few ways to accomplish the task of auditing writes, updates and deletions performed at field-row level. The most common approach, but also the most challenging, is reading from the database transaction logs that luckily nowadays are wrapped around an API layer called CDC - Change Data Capture - which provides a way for application developers and DBAs to read throught it and understand the entire history of the changes that have been made from a certain time frame.

We used the term "challenging" because every database vendor have implemented its own way to expose these logs and building a tool capable of being compatible with all of them it is indeed a challenge by itself and sometimes specific vendors or database versions (especially older ones) don’t provide either CDC or low level APIs to grab transaction logs from it.

In order to provide a wider compatibility on capturing real-time change streams from the vast majority of relational databases out there in the field we decided to develop a fine-tuned subset of UDFs (user defined functions) that together with a set of triggers helps Gluesync to enlarge the compatibility-base with relational databases while maintaining a safe, fast and secure approach with which entire lifecycle is entirely managed by its engine itself. We called this feature GDC - Gluesync Data Capture - used for certain kind of database brands | versions | editions that do not currently (or at all) the native CDC tecnique or for those who we initially decided to make compatible first throught that feature and then to provide CDC out-of-the-box in the upcoming future.

As naming conventions to nickname each type of Gluesync direction we adopted the following nomenclature per each replication component:
