Sybase ASE CDC: Triggers Setup with Gluesync

Source data from SAP (Sybase) ASE

Prerequisites

To have Gluesync working on your SAP (Sybase) ASE instance you will need to have:

Valid user credentials with permission to read, and write to the target tables.

Setup via Web UI

Hostname / IP Address: DNS record or IP Address of your server;
Port: Optional, defaults to 5000;
Database name: Name of your target database;
Username: Username with read & write access to database and its tables;
Password: Password belonging to the given username.

Custom properties

Source change retention: (optional, defaults to 5) Number of retention days preserved in the Gluesync GDC GLUESYNC_ACTION_LOG table inside your database.

Specific configuration

This agent has no specific configuration properties.

Setup via Rest APIs

Here following an example of calling the CoreHub’s Rest API via curl to setup the connection for this Agent.

Connect the agent

curl --location --request PUT 'http://core-hub-ip-address:1717/pipelines/{pipelineId}/agents/{agentId}/config/credentials' \
--header 'Content-Type: application/json' \
--header 'Authorization: ••••••' \
--data '{
        "hostCredentials": {
        "connectionName": "myAgentNickName",
        "host": "host-address",
        "port": 5000,
        "databaseName": "db_name",
        "username": "",
        "password": "",
        "maxConnectionsCount": 100,
        "enableTls": true,
        "certificatePath": "/myPath/cert.pem"
      }
}'

Triggers auditing structure

Triggers are automatically created by the Agent only in the desired tables. These are recognizable by the following trigger_schemaname_tablename_operation naming/format convention adopted.

Three are the triggers created:

Insert: identified by the _insert suffix, it records INSERT operation made in the table where it is installed;
Update: identified by the _update suffix, it records UPDATE operation made in the table where it is installed;
Delete: identified by the _delete suffix, it records DELETE operation made in the table where it is installed;

Manually create triggers

Sybase (SAP) ASE has a limitation where only one trigger per operation can be setup on a table. If your table has already triggers installed (for any of the three operation) then the automated setup must be disabled by setting the following flag to false while setting up your entity during the entity setup wizard. See screenshot below for reference.

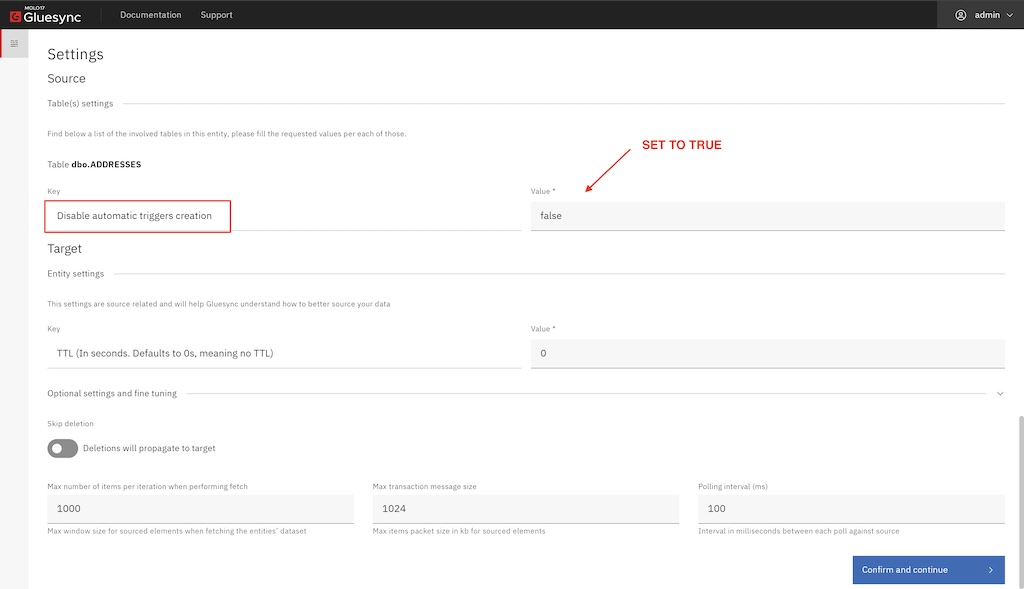

How to disable automatic triggers creation

Once done triggers for Gluesync must manually created in the table in subject by merging its existing code with Gluesync’s one.

Here following you can find the respective triggers source code that can be merged with yours:

Insert

CREATE TRIGGER YOUR_TRIGGER_NAME_INSERT
ON schemaname.TABLENAME
FOR INSERT
AS
BEGIN
   INSERT INTO schemaname.TABLENAME_CDC (TIMESTAMP, OPERATION, FIELD1, FIELD2, FIELD3, FIELD4, FIELD5)
   SELECT GETDATE(), 'I', FIELD1, FIELD2, FIELD3, FIELD4, FIELD5
   FROM inserted
END
go

Update

CREATE TRIGGER YOUR_TRIGGER_NAME_UPDATE
ON schemaname.TABLENAME
FOR UPDATE
AS
BEGIN
   INSERT INTO schemaname.TABLENAME_CDC (TIMESTAMP, OPERATION, FIELD1, FIELD2, FIELD3, FIELD4, FIELD5)
   SELECT GETDATE(), 'U', FIELD1, FIELD2, FIELD3, FIELD4, FIELD5
   FROM inserted
END
go

Delete

CREATE TRIGGER YOUR_TRIGGER_NAME_DELETE
ON schemaname.TABLENAME
FOR DELETE
AS
BEGIN
   INSERT INTO schemaname.TABLENAME_CDC (TIMESTAMP, OPERATION, FIELD1, FIELD2, FIELD3, FIELD4, FIELD5)
   SELECT GETDATE(), 'D', FIELD1, FIELD2, FIELD3, FIELD4, FIELD5
   FROM deleted
END
go

CDC table

Trigger’s captured events are stored in a Gluesync-managed table name CDC table. These tables are created by Gluesync during the entity setup wizard and are meant to act as a ledger, recording all the events that are happening at the audited table level.

Gluesync automatically creates a CDC table per each of the audited tables, this allow for performances, granular auditing of changes and easy of manageability.

When a change is made on the audited table, the operation-specific trigger is fired and it stores data into the respective CDC table.

Enabling automatic trimming for Char data types

Char values are known to allocate a fixed number of characters like, for example, a Char(10) allocates 10 fixed characters, this fixed allocation adds trailing whitespaces to the actual value in order to fill the space left until reaching the desired fixed value.

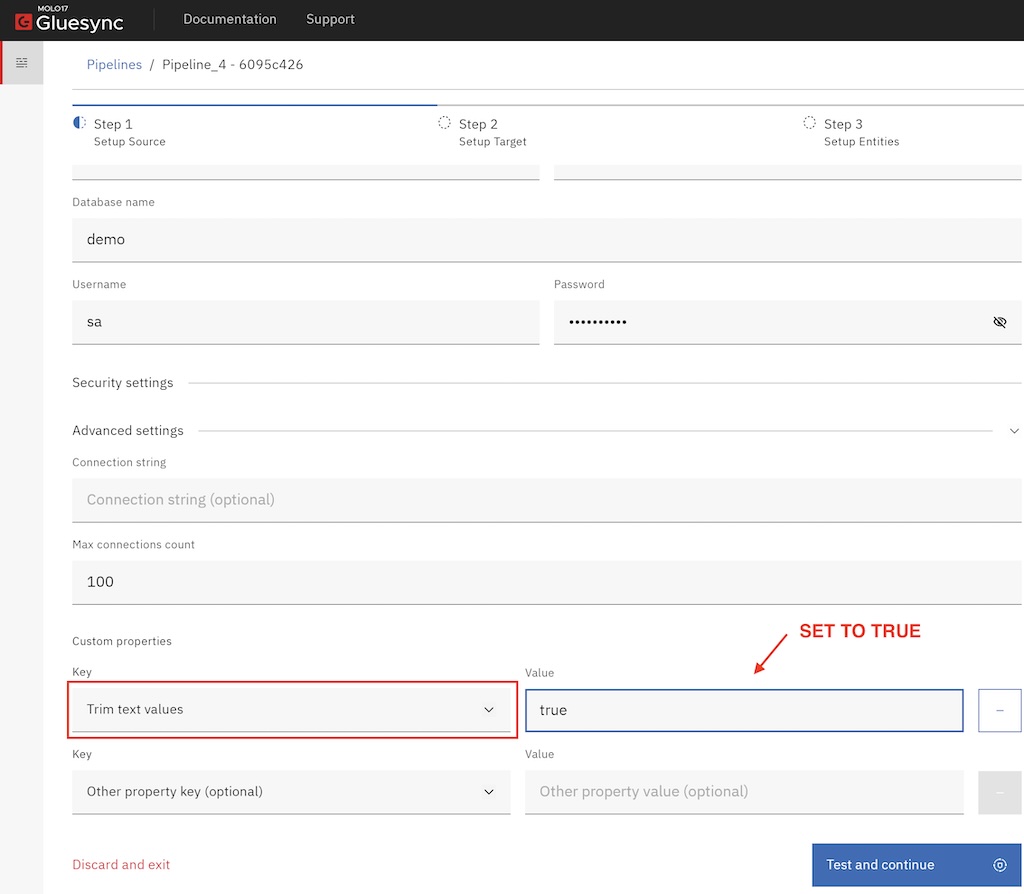

To avoid the agent to source values with trailing whitespaces there’s an option you can turn on at Agent’s settings level so every text value passes through a trim process before being set over to the target. Please refer to the below screenshot for reference.

Working with Before & After images

Before & after images are a feature that allows Gluesync to track the changes that have occurred in your database and comparing them with their previous values. This enables Gluesync to apply only the changes that have occurred, saving bandwidth and processing time.

This agent does not support Before & After images.
