Control Plane Monitoring

The Control Plane UI provides comprehensive monitoring capabilities directly from your browser.

Pipeline Status Monitoring

Pipeline Status Monitoring

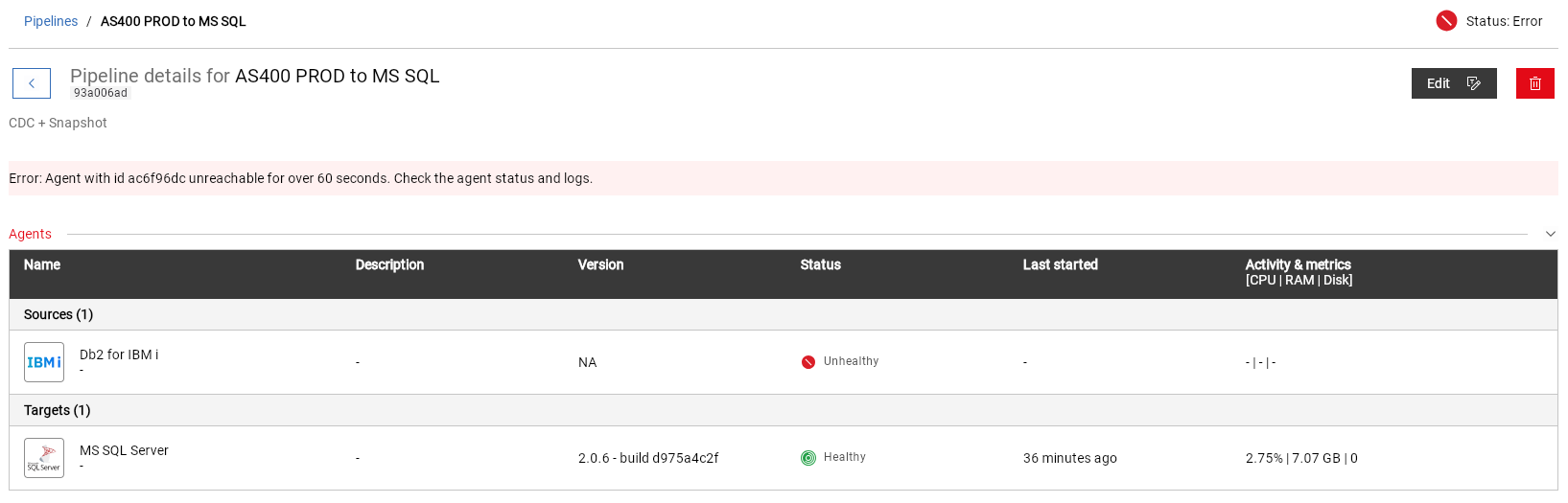

The pipeline monitoring dashboard provides real-time visibility into your pipeline’s health and performance:

  • Pipeline Health Indicators:

    • Status: Shows if the pipeline is active, on hold, or in error state

    • Source Agent Status: Indicates the health of the source agent (healthy/unhealthy)

    • Target Agent Status: Shows the status of the target agent

    • Last Activity: Displays the timestamp of the most recent activity

  • Performance Metrics:

    • Activity & Metrics: Shows throughput and RAM usage

    • Error tracking: Displays any issues that need attention

Entity Details Monitoring

For each entity within a pipeline, you can access detailed performance metrics and insights:

Replication Status Overview

Metric Description Example

CDC Status

Current replication status

Idle/Active

End-to-End Latency

Actual processing time

-319.31 ms

Transactions per Second

Real-time throughput

10

Total Processed Events

Event count

13

Avg. Items per Event

Items processed per event

1

Total Data Transferred

Volume of transferred data

277.73 kB

Performance Metrics & Insights

Key Information

  • Entity ID

  • Pipeline ID

  • Source Agent ID

  • Target Agent ID

Time-based Metrics

Metric Description

Read time

Time taken to read from source (e.g., 11.3 ms)

Transmission time (source to target)

Time for data transmission between source and target (e.g., 308.33 ms)

Write time

Time taken to write to target (e.g., 9.86 ms)

Transmission to storage time

Time for data to be stored after transmission (e.g., 2.27 ms)

Storage time

Time spent in storage operations (e.g., 0.58 ms)

End-to-end time

Total processing duration (e.g., 319.31 ms)
Values are in milliseconds and indicate average values over the operation completed in the past relative to the current time.

Data Metrics

Metric Description

Row count

Total number of rows processed

Total data transferred

Volume of data moved (e.g., 177.73 kB)

Last transaction ID

Identifier of the most recent transaction

Snapshot progress

Percentage of snapshot completion (e.g., 0.0%)

Snapshot row count

Number of rows in current snapshot

Snapshot time

Time taken for snapshot processing (e.g., 0 ms)

Field Mapping Details

The entity view provides a detailed field mapping table showing:

  • Source field names and their corresponding target fields

  • Field-by-field mapping visualization

  • Search functionality to filter specific fields

  • Unique row identifier (if any)

Agent Monitoring

Each agent’s status is clearly displayed with:

  • Health Status Indicators:

    • [GREEN] Agent is healthy and operating normally

    • [RED] Agent requires attention

  • Version Information:

    • Build version (e.g., 2.0.6-build.0575e4c2f)

    • Last connection time

For enterprise-grade monitoring capabilities and integration with existing monitoring infrastructure, refer to the Prometheus Integration.
